CONTROL THE FUTURE. WE DO.

SITECH is proud to present Trimble's next generation machine control: Trimble Earthworks. Trimble and SITECH bring machine technology to the next level.

The Trimble® Earthworks Grade Control Platform offers groundbreaking features for all machine types. It is designed to help you do more in less time.

State-of-the-art software and hardware give operators of all skill levels the ability to work faster and more productively than ever before.

The intuitive software was created in collaboration with construction equipment operators around the world, so the interface is optimized for ease-of-use and productivity.

COMPONENTS

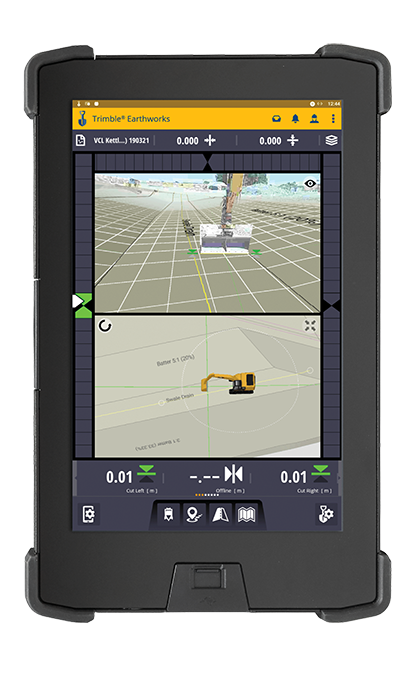

TRIMBLE TD510 / TD520

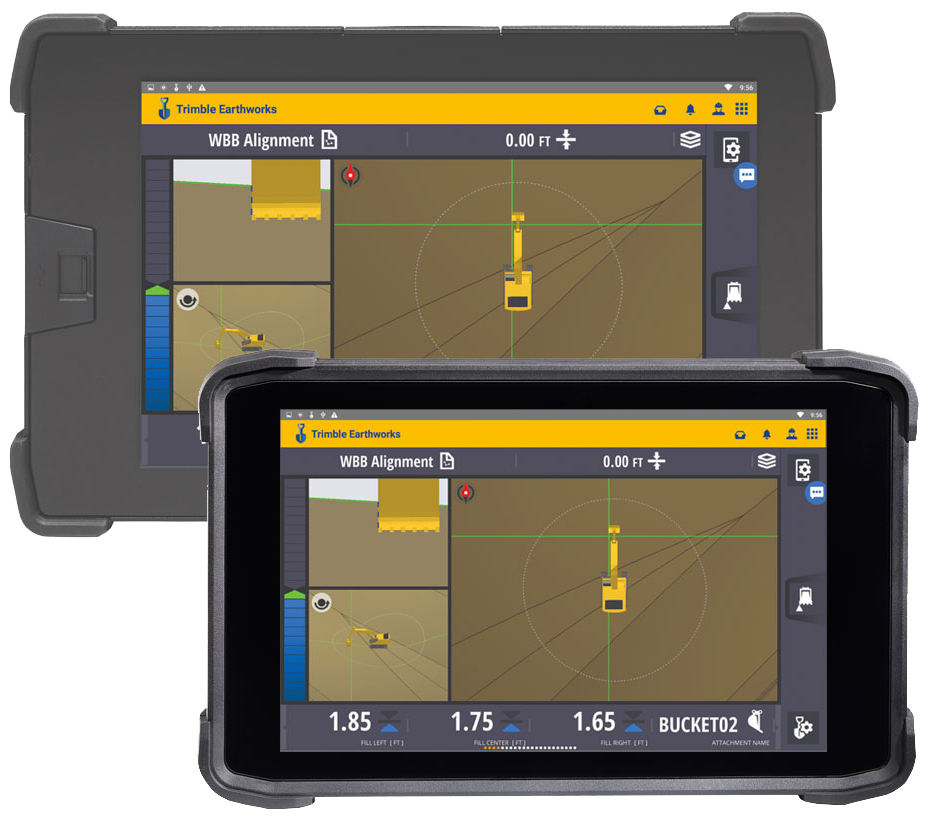

The Trimble 10-inch TD520 and 7-inch TD510 displays are the premium solution to ensure the best user experience with the Trimble Earthworks Grade Control Platform.

  • Sunlight-readable, optically bonded LCD with capacitive multi-touch interaction
  • Android operating system for easy software extensibility
  • Powerful quad core processor platform with dedicated graphics processor
  • Integrated Bluetooth and Wi-Fi for wireless connectivity
  • Quick release RAM mounting for daily theft protection removal

CONFIGURATIONS

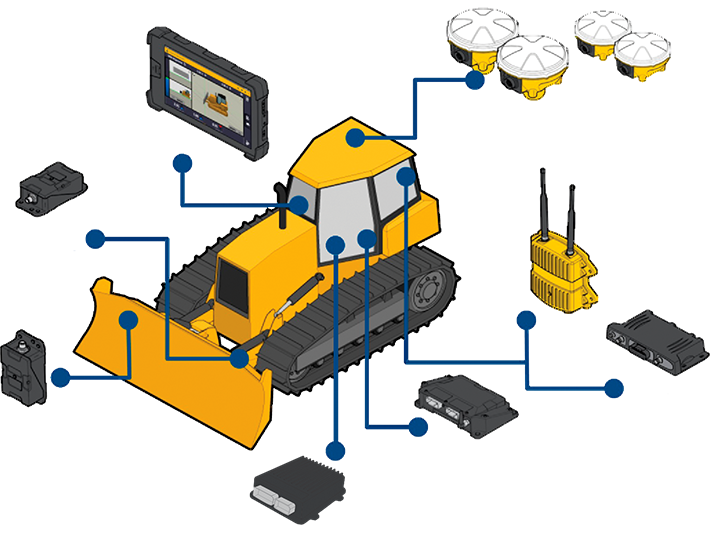

Configurations: Dozers

  1. MS995 or MS975 GNSS Smart Antennas
  2. SNRX30 On-machine Radio
  3. SNM941 Connected Site Gateway
  4. EC520 Electronic Controller
  5. NavController III (optional Horizontal Steering Control)
  6. GS520 Sensor x2
  7. TD520 or TD510 Display

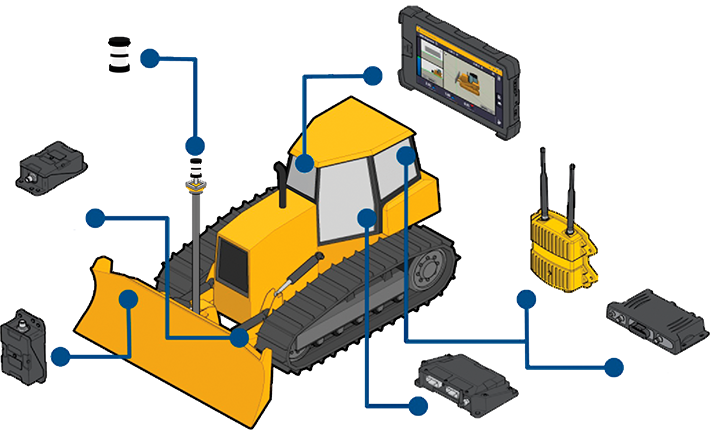

  1. TD520 or TD510 Display
  2. SNRX30 On-machine Radio
  3. SNM941 Connected Site Gateway
  4. EC520 Electronic Controller
  5. GS520 Sensor x2
  6. Mast and MT900 Machine Target

Configurations: Excavators

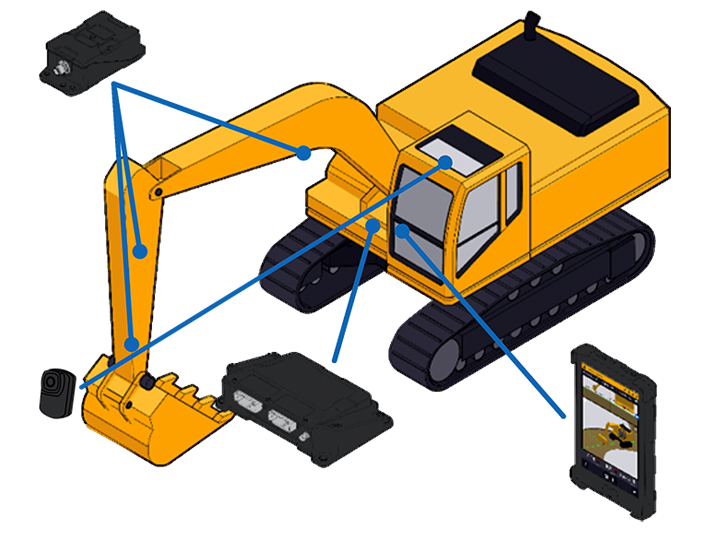

config-excavators-1

  1. GS520 Sensor
  2. Camera (optional augmented reality view)
  3. EC520 Electronic Controller
  4. TD520 or TD510 Display

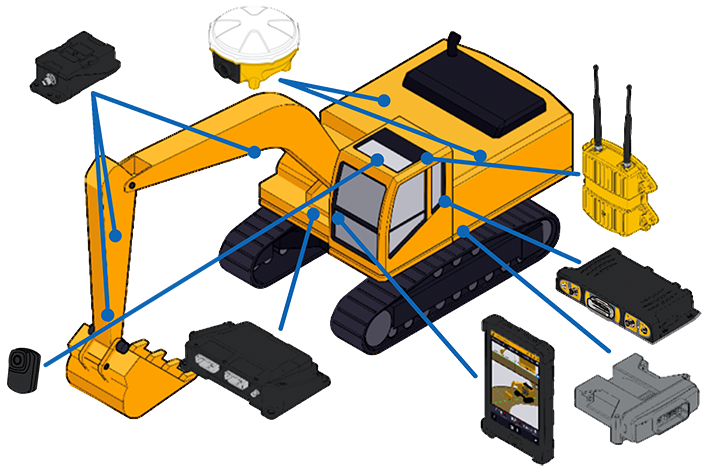

config-excavators-2

  1. MS995 or MS975 GNSS Smart Antennas
  2. SNRX30 On-machine Radio
  3. SNM941 Connected Site Gateway
  4. VM510 Valve Module
  5. TD520 or TD510 Display
  6. EC520 Electronic Controller
  7. Camera (optional augmented reality view)
  8. GS520 Sensor

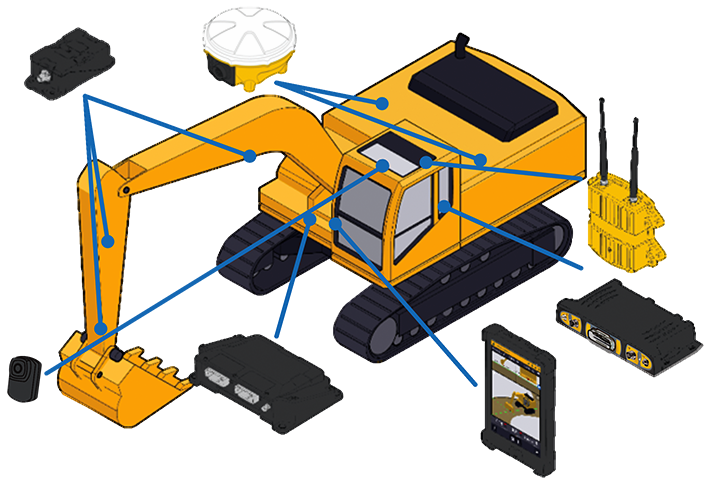

config-excavators-3

  1. MS995 or MS975 GNSS Smart Antennas
  2. SNRX30 On-machine Radio
  3. SNM941 Connected Site Gateway
  4. TD520 or TD510 Display
  5. EC520 Electronic Controller
  6. Camera (optional augmented reality view)
  7. GS520 Sensor

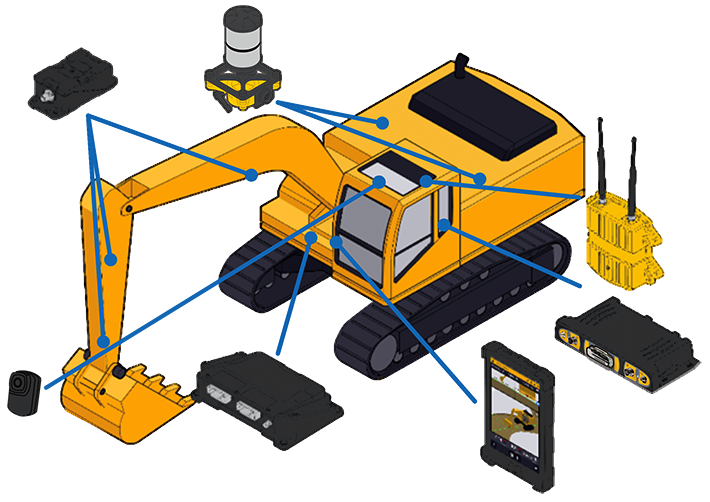

config-excavators-4

  1. MT900 Machine Target
  2. SNRX30 On-machine Radio
  3. SNM941 Connected Site Gateway
  4. TD520 or TD510 Display
  5. EC520 Electronic Controller
  6. Camera (optional augmented reality view)
  7. GS520 Sensor

Configurations: Graders

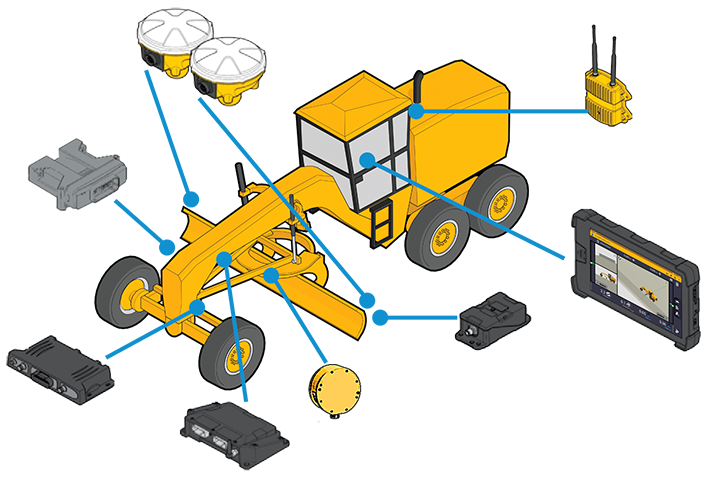

config-graders-1

  1. MS995 GNSS Smart Antennas
  2. SNRX30 On-machine Radio
  3. TD520 or TD510 Display
  4. GS520 Sensor
  5. Rotation Sensor
  6. EC520 Electronic Controller
  7. SNM941 Connected Site Gateway
  8. VM510 Valve Module (as required)

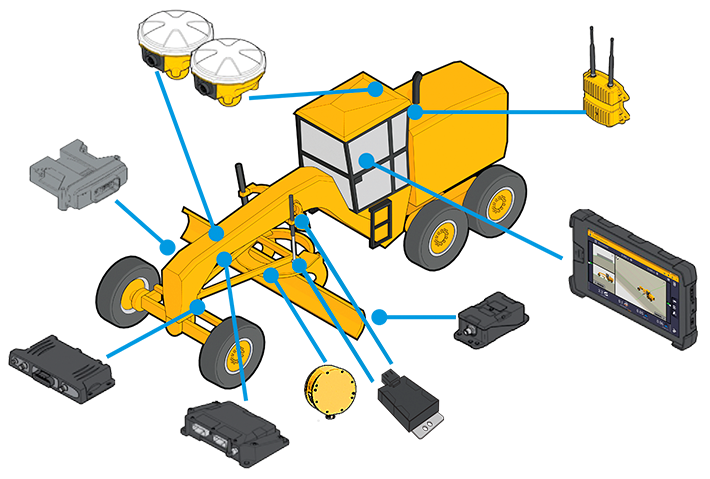

config-graders-2

  1. MS995 or MS975 GNSS Smart Antennas*
  2. SNRX30 On-machine Radio
  3. TD520 or TD510 Display
  4. GS520 Sensor
  5. GS510 Sensors
  6. Rotation Sensor
  7. EC520 Electronic Controller
  8. SNM941 Connected Site Gateway
  9. VM510 Valve Module (as required)

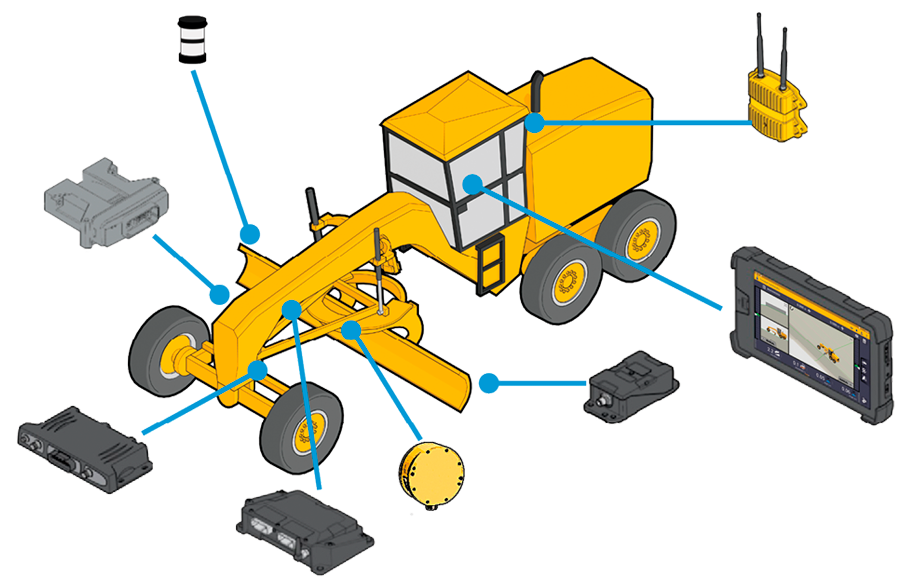

config-graders-3

  1. Mast and MT900 Machine Target
  2. SNRX30 On-machine Radio
  3. TD520 or TD510 Display
  4. GS520 Sensor
  5. Rotation Sensor
  6. EC520 Electronic Controller
  7. SNM941 Connected Site Gateway
  8. VM510 Valve Module (as required)

config-graders-4

  1. MS995 GNSS Smart Antennas
  2. SNRX30 On-machine Radio
  3. TD520 or TD510 Display
  4. GS520 Sensor
  5. Rotation Sensor
  6. EC520 Electronic Controller
  7. SNM941 Connected Site Gateway
  8. VM510 Valve Module (as required)

Configurations: Compact Graders

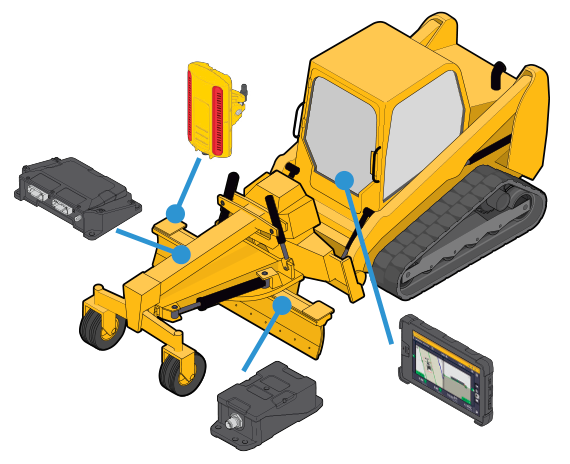

config-graders-5

  1. LR410 Laser Receivers
  2. EC520 Electronic Controller
  3. TD520 or TD510 Display
  4. GS520 Sensor

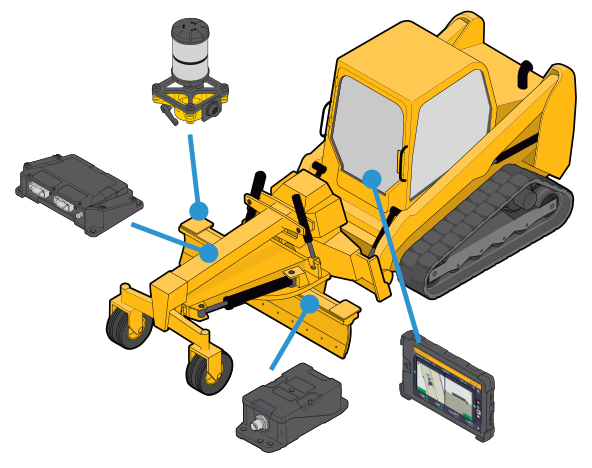

config-graders-6

  1. MT900 Machine Target
  2. EC520 Electronic Controller
  3. TD520 or TD510 Display
  4. GS520 Sensor

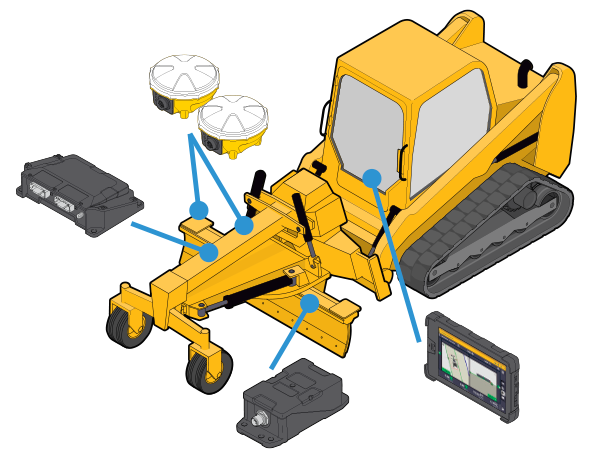

config-graders-7

  1. MS995 or MS975 GNSS Smart Antenna(s)
  2. EC520 Electronic Controller
  3. TD520 or TD510 Display
  4. GS520 Sensor

All in One App!

It will not get easier than this.

Supports 3rd Party Android Devices. Easy access to all functionalities. Three touches on the display and you are already there.

You no longer have to search for functions and settings. Swipe, zoom and click. Simple and intuitive.

You will have easy access to instruction videos and other help if needed. Trimble Earthworks is probably the market's most easy-to-use software for operators.

  • Landscape and Portrait modes
  • 3D Views
  • Configurable - See what you want, how you want
  • 60 Month software updates included

iphone

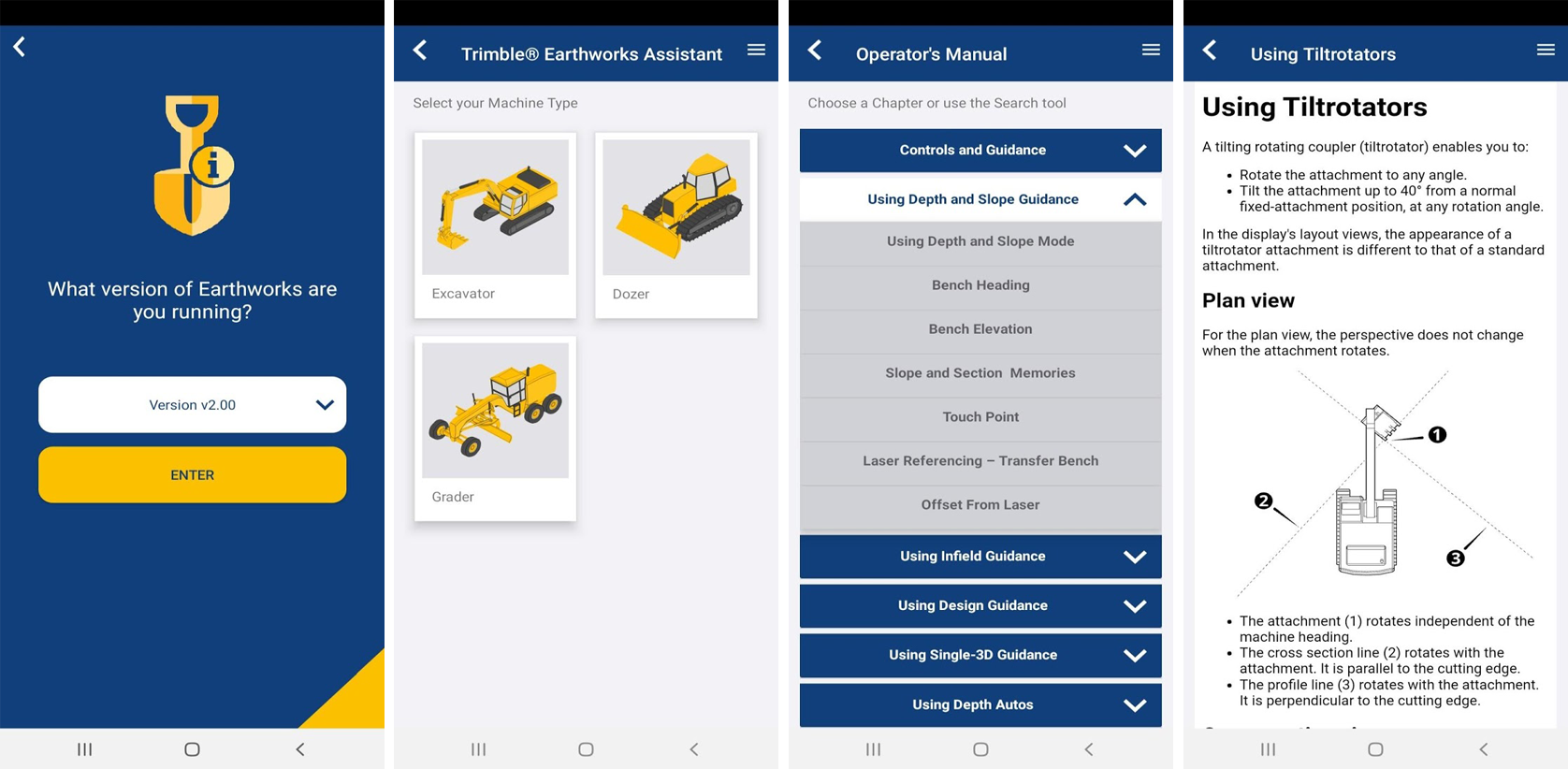

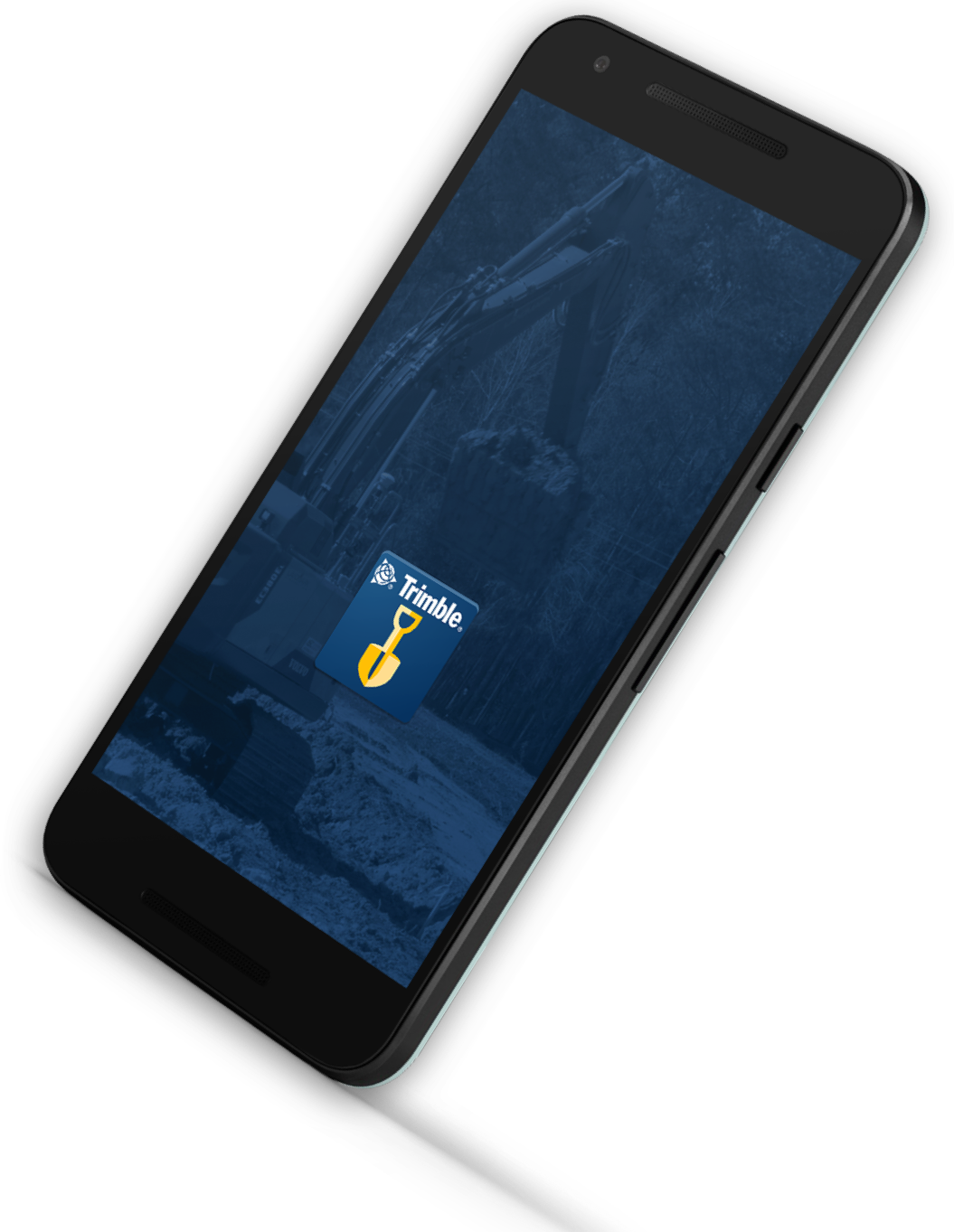

Earthworks Assistant App

The easier way to access critical Earthworks learning material and documentation.

Allowing for a shorter learning curve and less downtime for operators - the Trimble Earthworks Assistant stand-alone app consolidates and simplifies access to training guides and videos inside and outside of the cab.

The Earthworks Assistant App makes it easy to learn and troubleshoot using an Android cell phone, even from remote sites.
